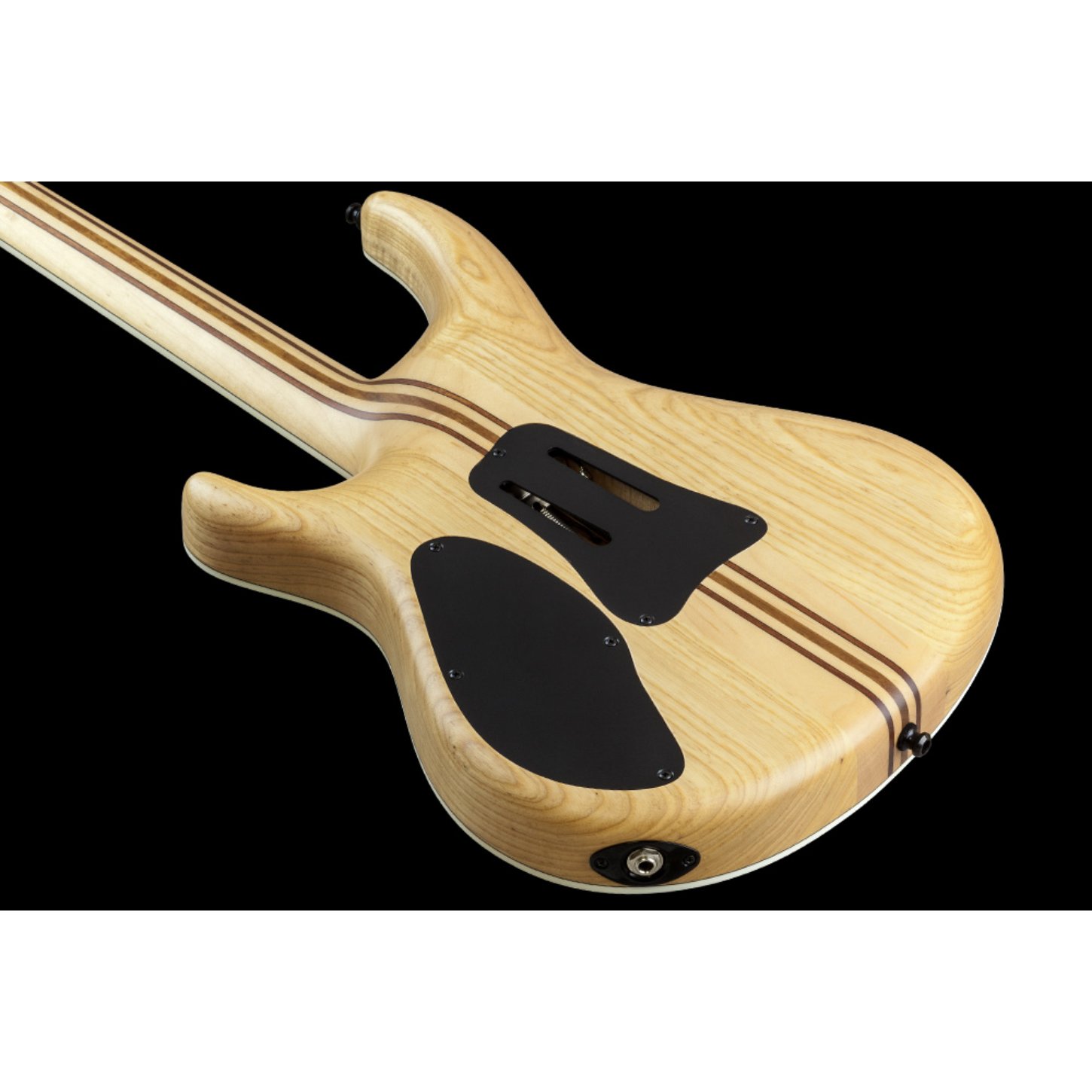

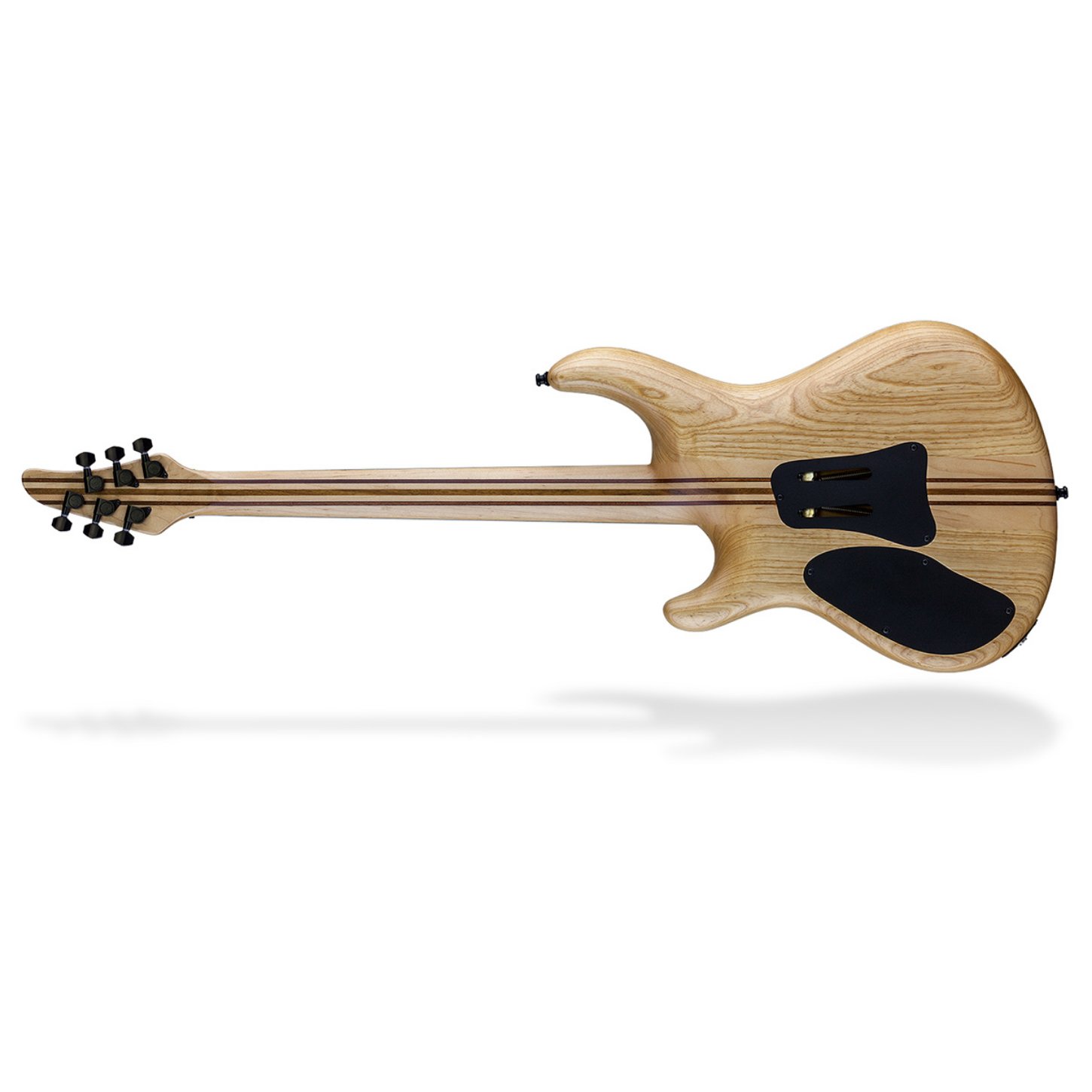

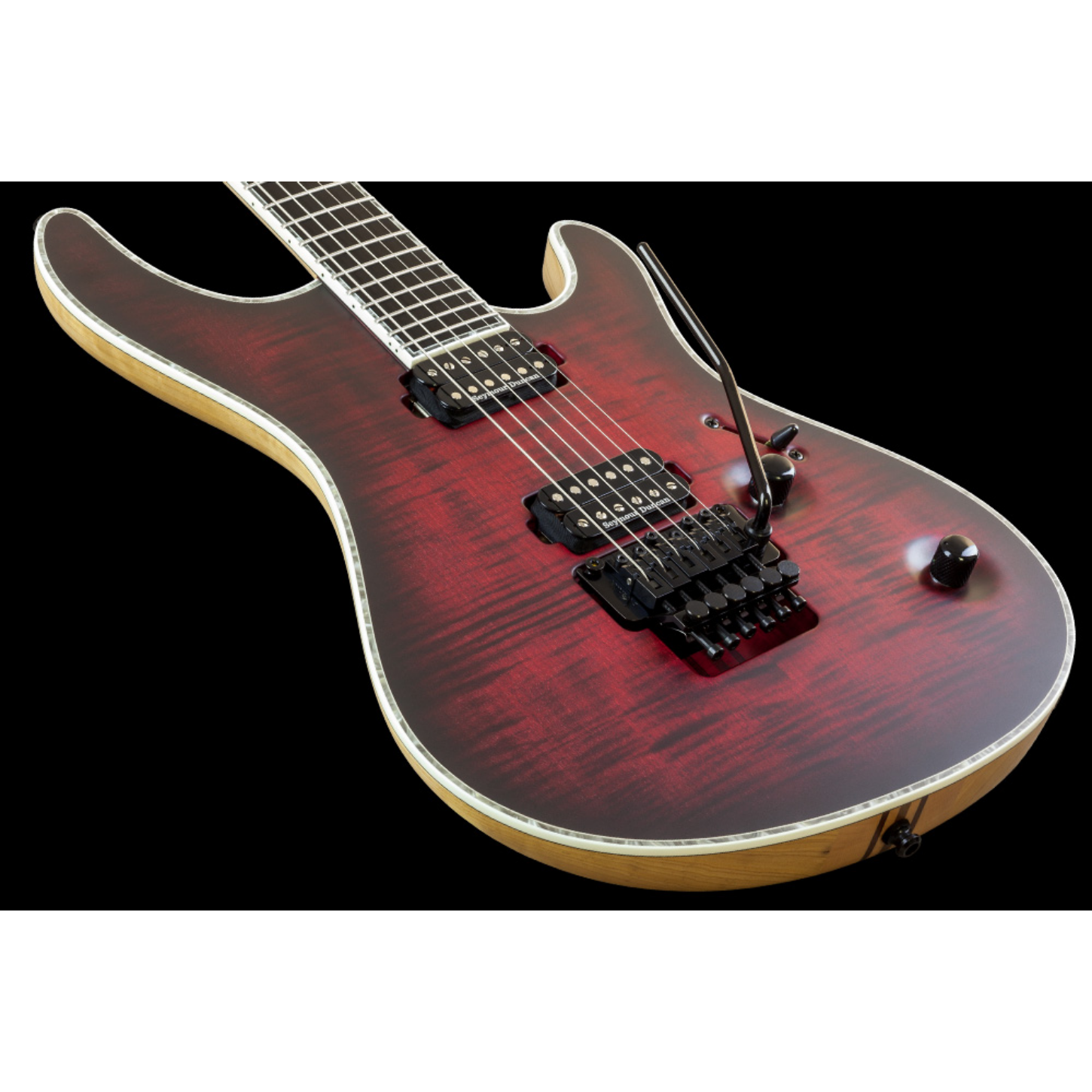

Body:
Profiled Swamp Ash
Profiled Mahogany Sapele body (optional)
Top:
Flamed Maple
Neck heel:
Special contoured for easy upper frets access
Unique Features:
New front contour (a more bending forearm curve) and a thinner profile of the upper part of the body back
Binding:
3-ply White ABS / Gray Pearloid

Construction:
Neck-thru-body
Scale:
25.4″ (645mm)
27" (687 mm) - baritone
Optional - available at extra fee
28" (711 mm) - baritone
Optional - available at extra fee
Neck:
11-ply / Maple - Mahogany - Amazakoe - Wenge
Radius:
16″ (406 mm)
Fingerboard:
Ebony
3-ply White ABS / Gray Pearloid
Markers & Inlays:
Original Luminlay™ side dots - Super Blue 2 mm
Neck dimensions:
Width at nut – 43 mm
Width XII fret – 53.5 mm
Width XXIV fret – 58.5 mm
Thickness I fret – 20.5 mm
Thickness XII fret – 21.5 mm
Truss rod:
Double action truss rod
Model's name inscripted in the trussrod cover
Frets:
24 extra jumbo, Ferd Wagner 9685 Stainless Steel
Crown dimensions: 2.80 × 1.45 mm (w × h)

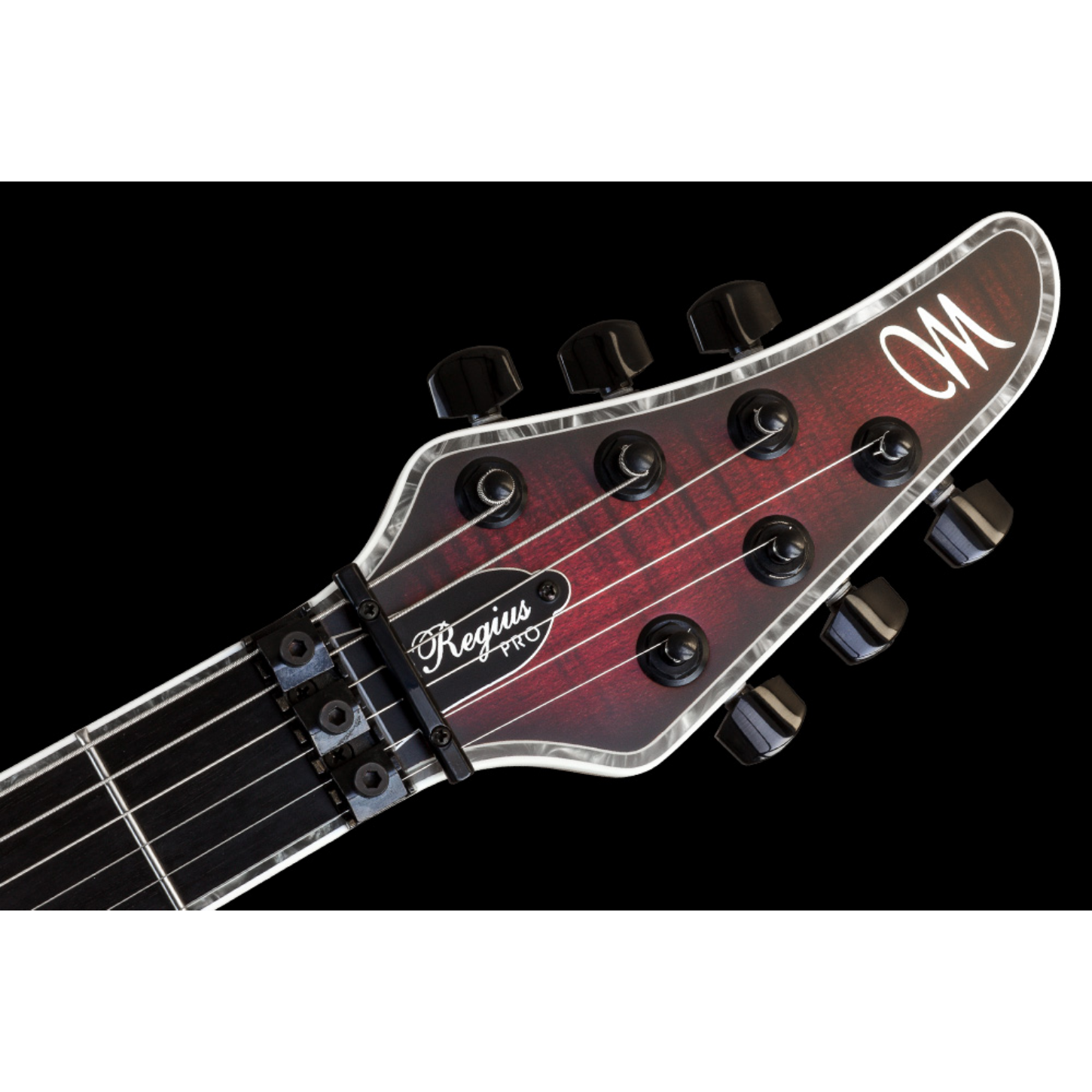

Headstock:
Angled; topped with figured Maple
3-ply White ABS / Gray Pearloid
Body matching finish
Nut:
Locking nut
Tuners layout:
3 + 3

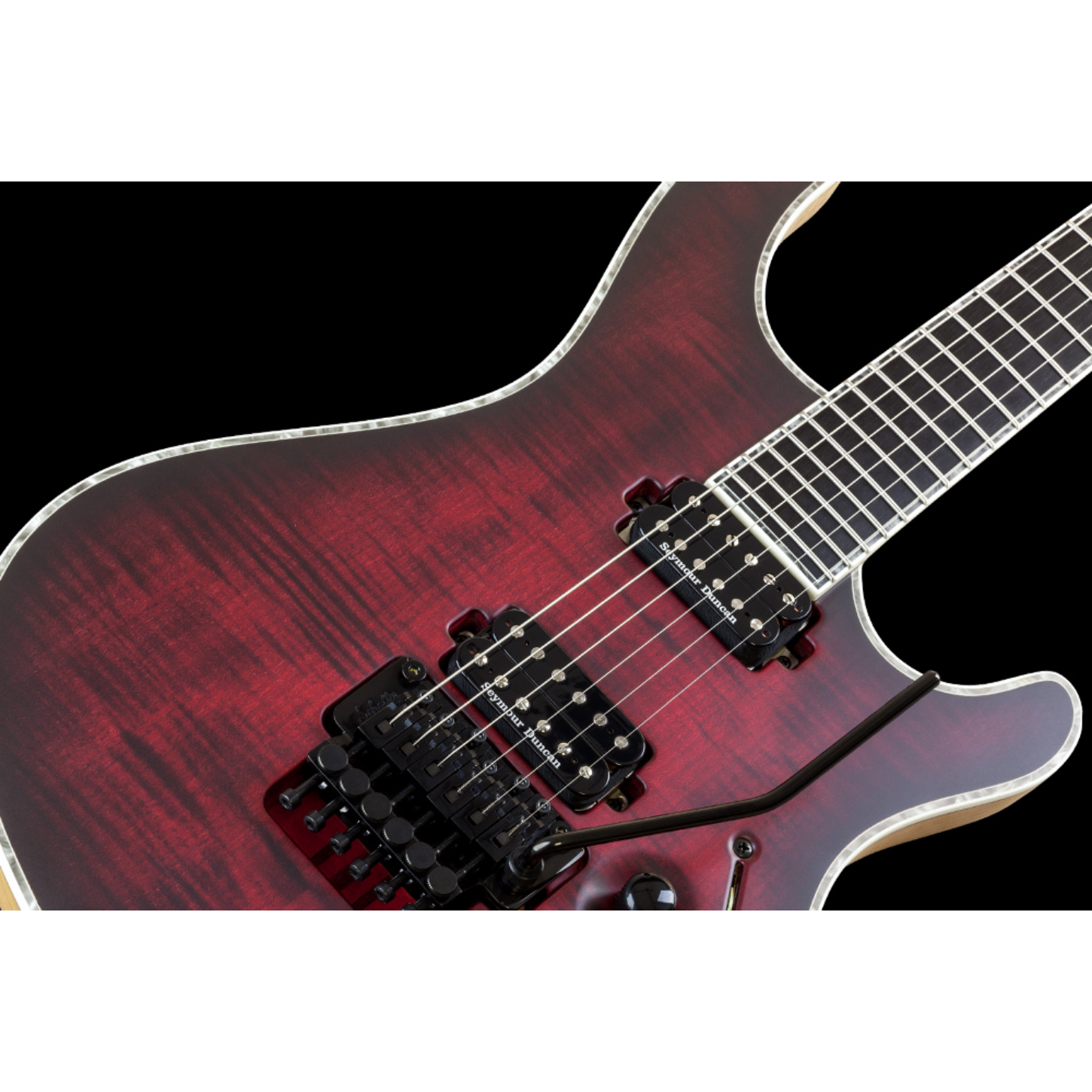

Pickups / Electronics:
H-H / Velvetrone® Ironside + Solium
Other Brands, Models and Configuration of pickups – on request
(extra fee may be required)
Control:
1 × Volume, 1 × Tone;
Mayones Treble Bleed Mod
Standard on all guitars built after summer of 2020.
3-way lever switch
Push-pull pot for pickups with coil-split option only
Knobs:
Speed Knob(-s)

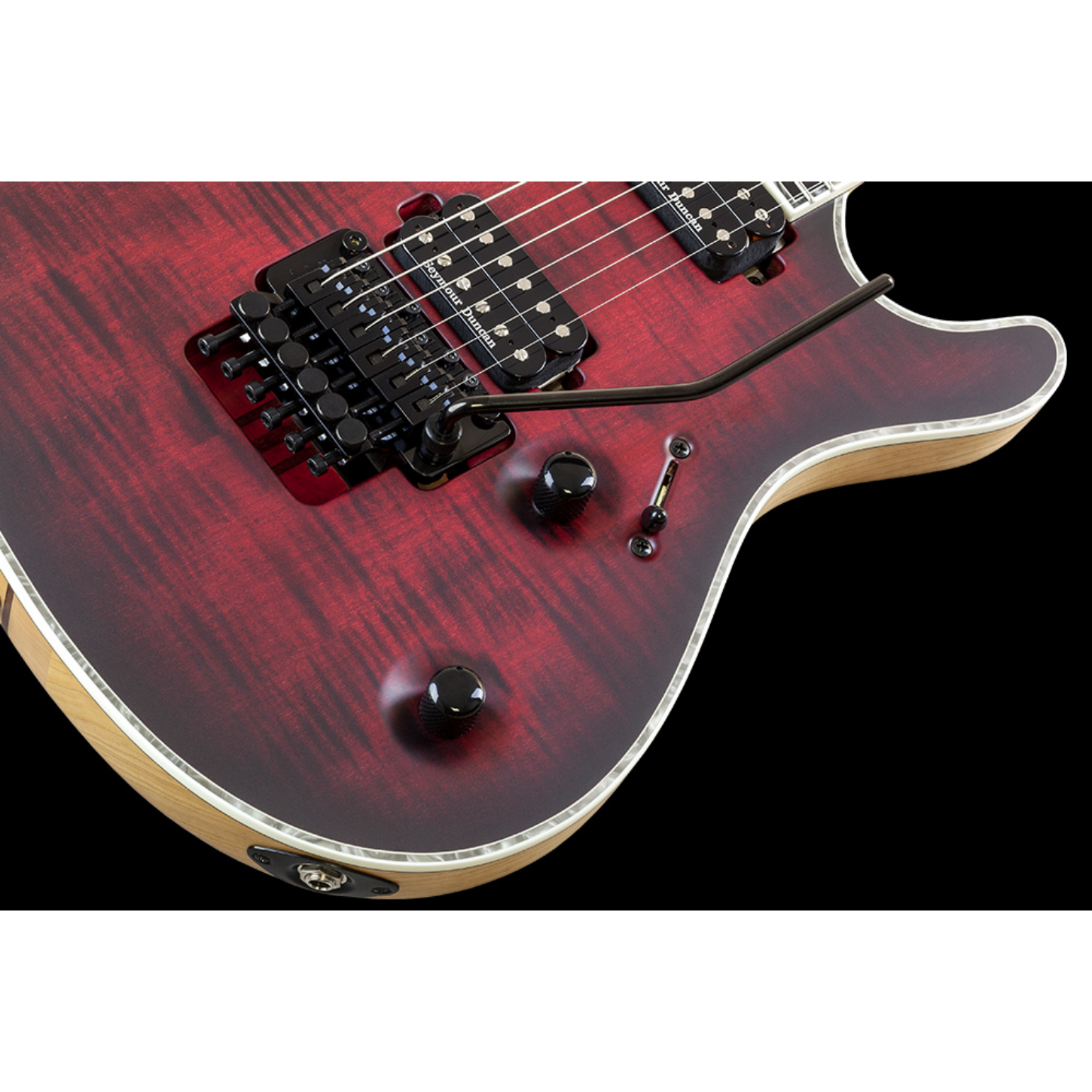

Bridge:
Schaller LockMeister® tremolo bridge
Strings:
.010 - .46 [6-string]
Tuners:
Schaller M6 mini
Additional equipment:
Schaller Security Straplocks
Switchcraft jack
Hardware colour:
Black (BLK)
Bag / case:
Mayones Double Deck Hybrid Gigbag
