Body:
Swamp Ash
Neck heel:
Special contoured for easy upper frets access
Unique Features:
Front forearm contour*
* - Replaces previous version with the Duvell 2019 Facelift.
Back belly cut
Binding:
No binding

Construction:
Bolt-on neck joint with a 4-screw mounted on ferrules*
* - Replaces previous 6-screw version with the Duvell 2019 Facelift.

Scale:
26.5″ (673mm)
Neck:
5-ply / Maple-Wenge
Two additional graphite rods
Radius:
16″ (406 mm)
Fingerboard:
Blackheart
No binding
Markers & Inlays:
Original Luminlay™ side dots - Super Blue 2 mm
Neck dimensions:
Width at nut – 48.5 mm
Width XII fret – 61.0 mm
Width XXIV fret – 66.0 mm
Thickness I fret – 20.0 mm
Thickness XII fret – 21.0 mm
Truss rod:
Double action truss rod
5mm White Double Offset Dots
Model's name inscripted in the trussrod cover
Frets:
24 extra jumbo, Ferd Wagner Stainless Steel
Crown dimensions: 3,34 x 2.80mm (w × h)

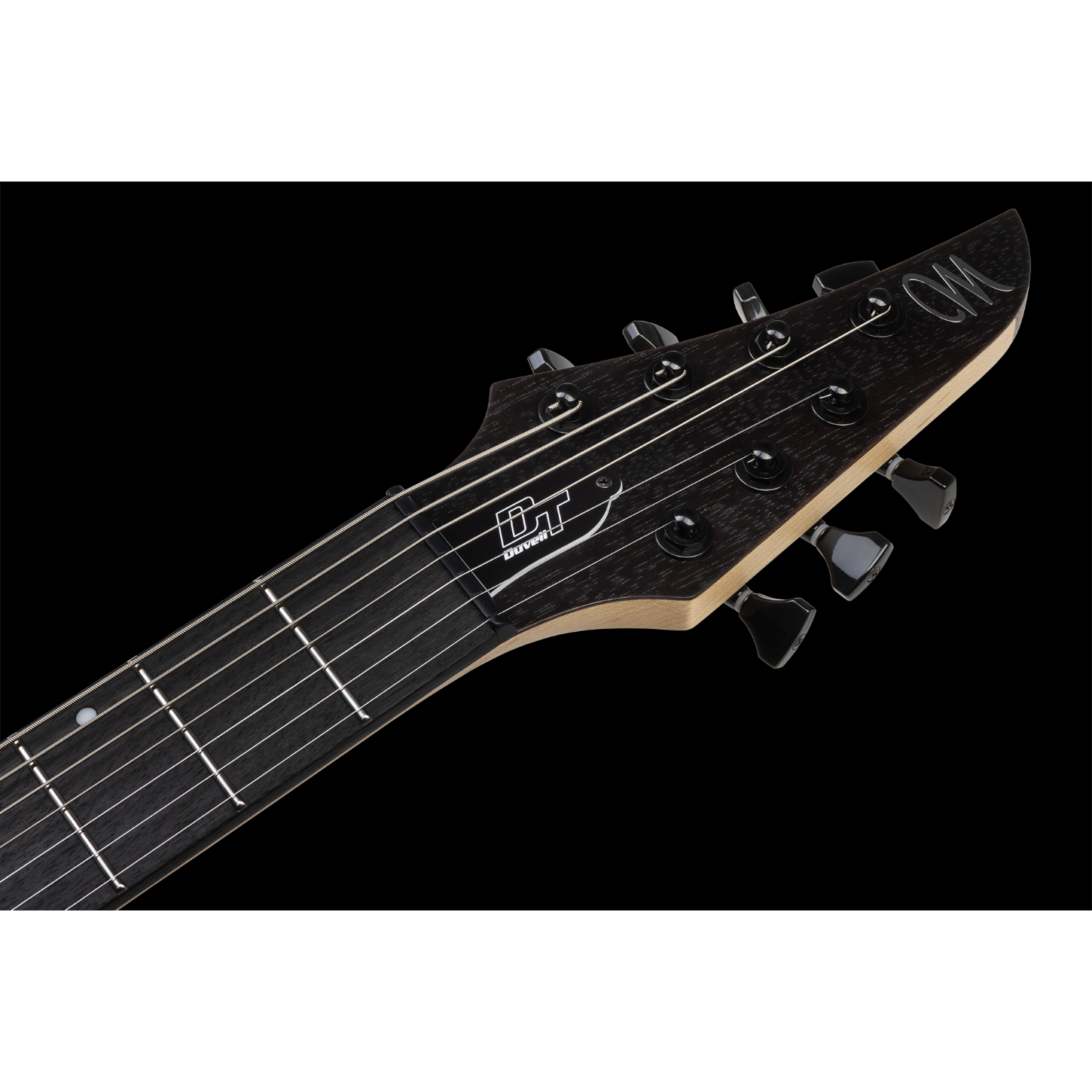

Headstock:
Angled
No binding
Blackheart veneer - fingerboard matching
Nut:
Graph Tech Black TUSQ
Tuners layout:
4 + 3

Pickups / Electronics:
H-H / Velvetrone® Ironside + Solium
Other Brands, Models and Configuration of pickups – on request
(extra fee may be required)
Control:
1 × Volume
Mayones Treble Bleed Mod?
Standard on all guitars built after summer of 2020.
5-way lever pickup switch
Knobs:
Standard metal dome knob(-s)

Bridge:
Hipshot 7 String Fixed Guitar Bridge
Strings:
.010 - .60 [7-string]
Tuners:
Hipshot Grip-Lock Locking Tuners
Additional equipment:
Schaller Security Straplocks
Switchcraft jack
Hardware colour:
Black (BLK)
Bag / case:
Mayones Hybrid Case
