Teknik Özellikler
Arayüz
I/O Kanalları: Analog: 6 Giriş / 4 Çıkış at 192 kHz
Digital: 2 Giriş / 2 Çıkış at 192 kHz
Max Sample Rate/Resolution: 192 kHz / 24-Bit
Display and Indicators: 2 x LEDs (Giriş Level)
1 x LED (+48V)
2 x LEDs (Giriş Selection)
2 x LEDs (Pad)
1 x LED (Host Connection)
1 x LED (MIDI)

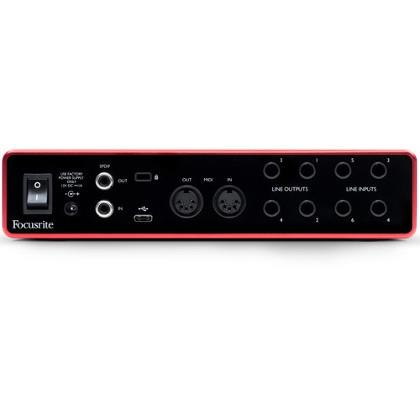

Bağlantı
Host Connection: 1 x USB Type-C (USB 2.0)
Analog I/O: 2 x Combo XLR-1/4" TRS Balanslı/Balanssız Mic/Line/Hi-Z Giriş
4 x 1/4" TRS Balanslı Line Giriş
4 x 1/4" TRS Balanslı Line Çıkış
2 x 1/4" TRS Balanssız Headphone Çıkış
Phantom Power: +48 V, Selectable On/Off (on 2 Channels)
Digital I/O: 1 x RCA Coaxial / S/PDIF Giriş
1 x RCA Coaxial / S/PDIF Çıkış
MIDI I/O: 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out
Memory Card Slot: None
Performans
Frequency Response: 20 Hz to 20 kHz ±0.1 dB
Gain Range: Mic/Line Giriş: 56 dB
Max Giriş Level: Mic Giriş: +9 dBu (Min Gain)
+16 dBu (Min Gain, Pad On)
Hi-Z Giriş: +12.5 dBu (Min Gain)
+14 dBu (Min Gain, Pad On)
Line Giriş: +22 dBu (Min Gain)
+29 dBu (Min Gain, Pad On)
Max Çıkış Level: Line Çıkış: +15.5 dBu (Balanslı)
Headphone Çıkış: +7 dBu
Dynamic Range: Mic Giriş: 111 dBA
Hi-Z Giriş: 110.5 dBA
Line Giriş: 110.5 dBA
Line Çıkış: 108.5 dBA
Headphone Out: 104 dBA
Impedance:
Mic Giriş: 3 kOhms
Hi-Z Giriş: 1.5 MOhms
Line Giriş: 60 kOhms
Line Çıkış: 430 Ohms
Headphone Çıkış: <1 Ohm
THD+N: Mic Giriş: < 0.0012%
Hi-Z Giriş: < 0.03%
Line Giriş: < 0.002%
Line Çıkış: < 0.002%
Headphone Çıkış: < 0.002%
EIN: Mic Giriş: -128 dB (A-Weighted)
Dijital Ses
Sample Rates: Up to 192 kHz (AD/DA Conversion)
Bit Depth: Up to 24-Bit (AD/DA Conversion)
Sync Sources: Internal, S/PDIF
Uyumluluk
OS Compatibility: macOS Windows
Required Hardware: Available USB 2.0 Port
USB Cable (Included)
Internet Connection: Required for Software/Driver Download
Güç
Power Requirements: AC/DC Power Adapter (Included)
AC/DC Power Adapter: 12 VDC at 1 A, Center-Positive (Included)
Fiziksel
Anti-Theft Features: Kensington Security Slot
Dimensions: 8.27 x 5.89 x 1.87" / 21.01 x 14.96 x 4.75 cm
Weight: 1.9 lb / 0.9 kg (Without Accessories)
2.4 lb / 1.1 kg (With Accessories)
Paket Bilgisi
Package Weight: 3.45 lb
Box Dimensions (LxWxH): 13.1 x 11.7 x 3.5"
